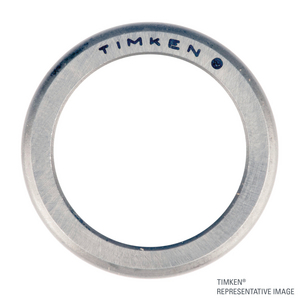

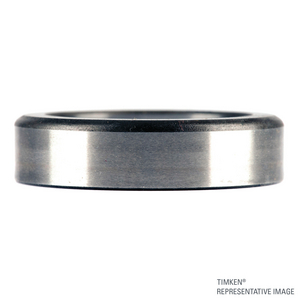

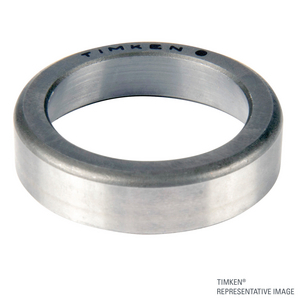

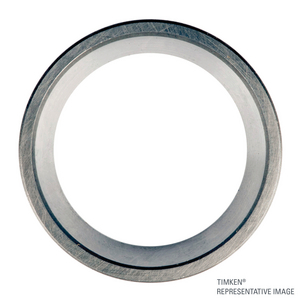

Tapered roller bearing Timken 3525, Outer diameter: 87.313 mm | Inner diameter: 41.275 mm | Width: 23.813 mm
Tapered Roller Bearings
See technical informationSee documentsReferences
Timken:3525
Rubix:207197
Manufacturer :100008298
EAN:0053893127873
Technical specifications
| Inner diameter | 41.275 mm |
|---|---|
| Outer diameter | 87.313 mm |
| Width | 23.813 mm |
Technical specification
Product details : 3525 pierścień zewn.
Timken is the recognized world leader in tapered roller bearings with the most extensive offering in the market. This is the basic and the most widely used type of tapered roller bearing. It consists of the inner-ring assembly and the outer ring. It is usually fitted as one of an opposing pair. During equipment assembly, single-row bearings can be “set” to the required clearance (endplay) or preload condition to optimize performance.
Strengths
Single-row tapered roller bearings have positive roller alignment that ensures true rolling motion and generates a “seating force” that pushes the roller against the cone large rib. This seating force prevents the rollers from skewing off apex, thereby keeping them positively aligned and located against the cone large rib.
Applications
Vehicle front wheels; Differential and pinion configurations; Conveyor rolls; Machine tool spindles; Trailer wheels
Technical specifications
Attributes
| Logistics dimensions (L x W x H) | 104x104x35 mm |
|---|---|
| Logistic Weight | 300 g |
| Packaged dimensions (D x W x H) | 95,758x95,758x26,67 mm |
| Package weight | 295,7 g |
| Inner diameter | 41.275 mm |
| Outer diameter | 87.313 mm |
| Width | 23.813 mm |
| Bearing Clearance | cn |
| Weight | 0.8 kg |
| Series | 3500 |
| Total bearing width | 30.163 mm |
| Standard | ISO |
| Basic static load, radial - C0r | 134000 N |
| Basic dynamic load, radial - Cr | 113000 N |
Show UNSPSC/ECL@SS
zł 96.03 excl. VAT
/ Each
zł 118.12 incl. VAT
- Delivery date on request
