Support roller SKF NATV 15

Support rollers (Yoke-type track rollers)

See technical information

References

SKF:NATV 15
Rubix:650121
Manufacturer :12923
EAN:7316570301021
SKF SUPPORT NATV 15

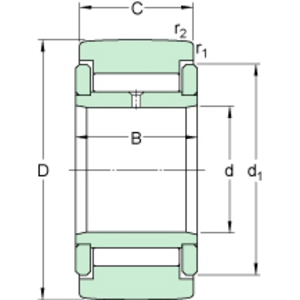

Technical specifications

Inner diameter15 mm
Outer diameter35 mm
Width19 mm
See all Specifications

Product details : Rolka nośna NATV 15

Strengths

- High radial load carrying capacity
- Accommodate axial loads due to skew or tilting
- Long service life
- Ready to mount
- Sealed for increased reliability, with relubrication feature

Technical specifications

Attributes
Logistics dimensions (L x W x H)19x35x35 mm
Logistic Weight105 g
Inner diameter15 mm
Outer diameter35 mm
Width19 mm
Sealingopen
Bearing Clearancecn
Seriesnatv
Materialbearing steel
Basic dynamic load, radial - Cr13.8 N
Basic static load, radial - C0r21.6 N
  • Delivery date on request
